Security Group

Security-groups can be used to allow egress or ingress traffic. By default security-groups have a DROP policy and only traffic permitted is allowed to flow through the VM.

Statefulness of Security Groups

Security groups in Excloud are stateful. That means when you create an Egress rule all connections are automatically tracked. This simplifies rule management and ensures proper functioning of applications that need bidirectional communication.

Supported Protocols

• IPv4
• IPv6
• TCPv4
• TCPv6
• UDPv4
• UDPv6

Examples

Console

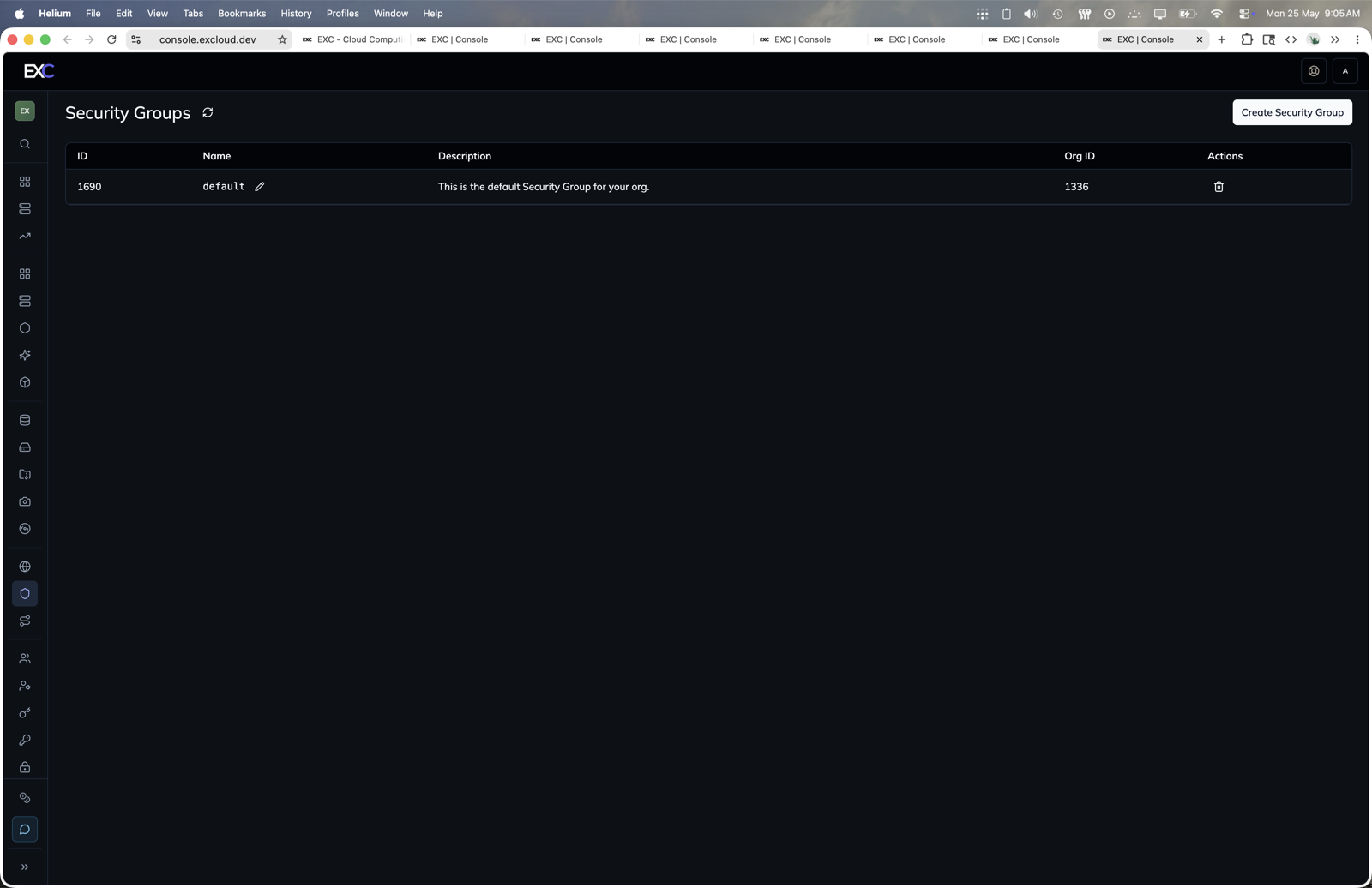

1. Open console.excloud.dev/console/security-groups.
2. Click Create Security Group.
3. Use the security group details or row actions to add ingress and egress rules.

Create a Security Group with Rules

1. Create a Security Group

   exc securitygroup create --name my-security-group --description "Allow ingress and egress"

2. Create Ingress Rules to Allow HTTP, SSH

   exc securitygroup rule ingress create --cidr 0.0.0.0/0 --protocol TCPv4 --port_range 8080-8081,22 --security_group_id $(exc securitygroup list | awk '/my-security-group/{print $1}')
   exc securitygroup rule ingress create --cidr ::/0 --protocol TCPv6 --port_range 8080-8081,22 --security_group_id $(exc securitygroup list | awk '/my-security-group/{print $1}')

3. Create Egress Rules to Allow All Traffic

   exc securitygroup rule egress create --cidr 0.0.0.0/0 --protocol IPv4 --port_range ANY --security_group_id $(exc securitygroup list | awk '/my-security-group/{print $1}')
   exc securitygroup rule egress create --cidr ::/0 --protocol IPv6 --port_range ANY --security_group_id $(exc securitygroup list | awk '/my-security-group/{print $1}')
